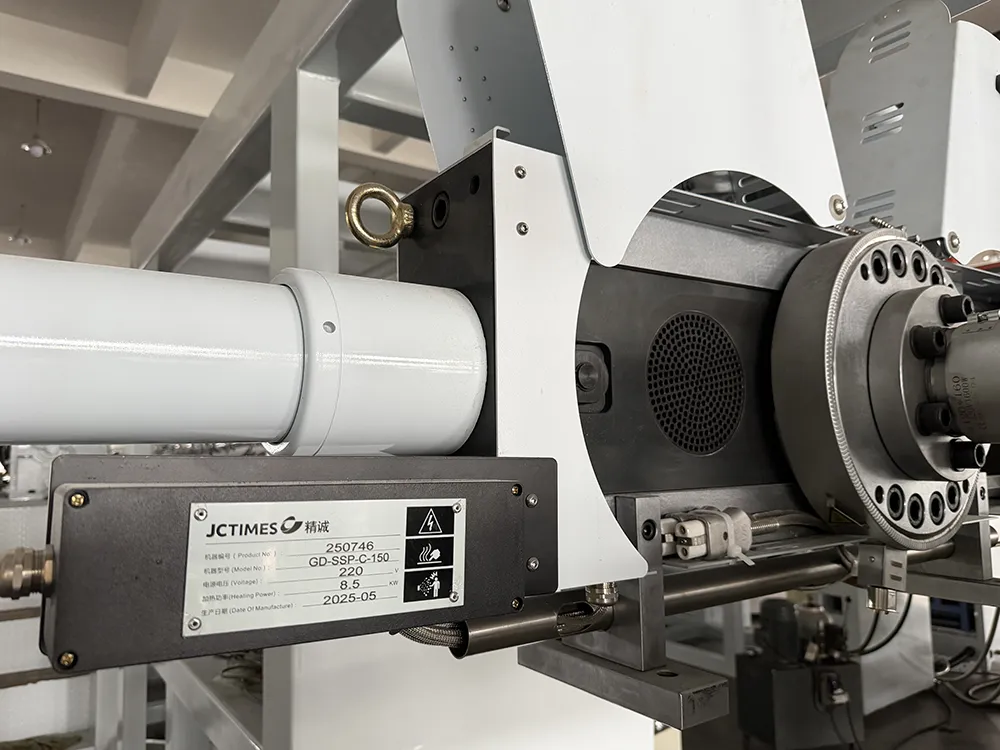

PP/PS plastic Sheet Extruder is specially designed for the production of 0.25mm-2.0mm single layer polypropylene/polystyrene sheet, SPJ-110/33-900 PP/PS sheet Extruder maximum output of 200kg/hr. The 110mm screw and independent temperature control system ensure stable and good plasticizing performance and extrusion efficiency, and avoid cracks or uneven colors in the later hot forming of PP-PS sheet.
We offer a variety of configurations for customers to choose from such as: JC-Time die head, Screen changer, metering pump, Siemens motor, ABB inverter and so on.
PP-PS sheet extrusion line Structure:
Extruder -- Screen changing machine -- metering pump (optional) -- T-mold -- calender -- cooling support -- traction -- trimming -- winding machine
PP
PET
PS
|
Model |
SPJ-110/33-900 |
SPJ-120/33-900 |
SPJ-130/33-900 |
|
Suitable Material |
PP/PS/PE/PP Calcium Carbonate |
||
|
Sheet Thickness |
0.3-2mm |
||
|
Die Width |
900mm（Can be customized） |
900mm（Can be customized） |
900mm（Can be customized） |
|
Screw |
110mm |
120mm |
130mm |
|
Motor |
55KW |
90KW |
132KW |
|
Size Of Calander Roller |
400*950MM（Can be customized） |
450*950MM（Can be customized） |
550*950MM（Can be customized） |
|
Approx.Output |
200kg/hr |
300-320kg/hr |
380-400kg/hr |
|
Machine Weight |
7000KG |
7400KG |
8000KG |
|
Machine Dimension |
12*1.2*2.2M |
13.5*1.25*2.3M |
14.5*1.25*2.3M |
